Intelligent equipment for high-rise fire extinguishing and rescue

Provide effective solutions for firefighting and rescue of high-rise buildings below 200 meters

A 100 meter tall building can be extinguished with water within 9 minutes; A 200 meter tall building can be extinguished with water within 15 minutes

Innovative application of drone technology, wireless communication remote control technology, and mechatronics integration technology:

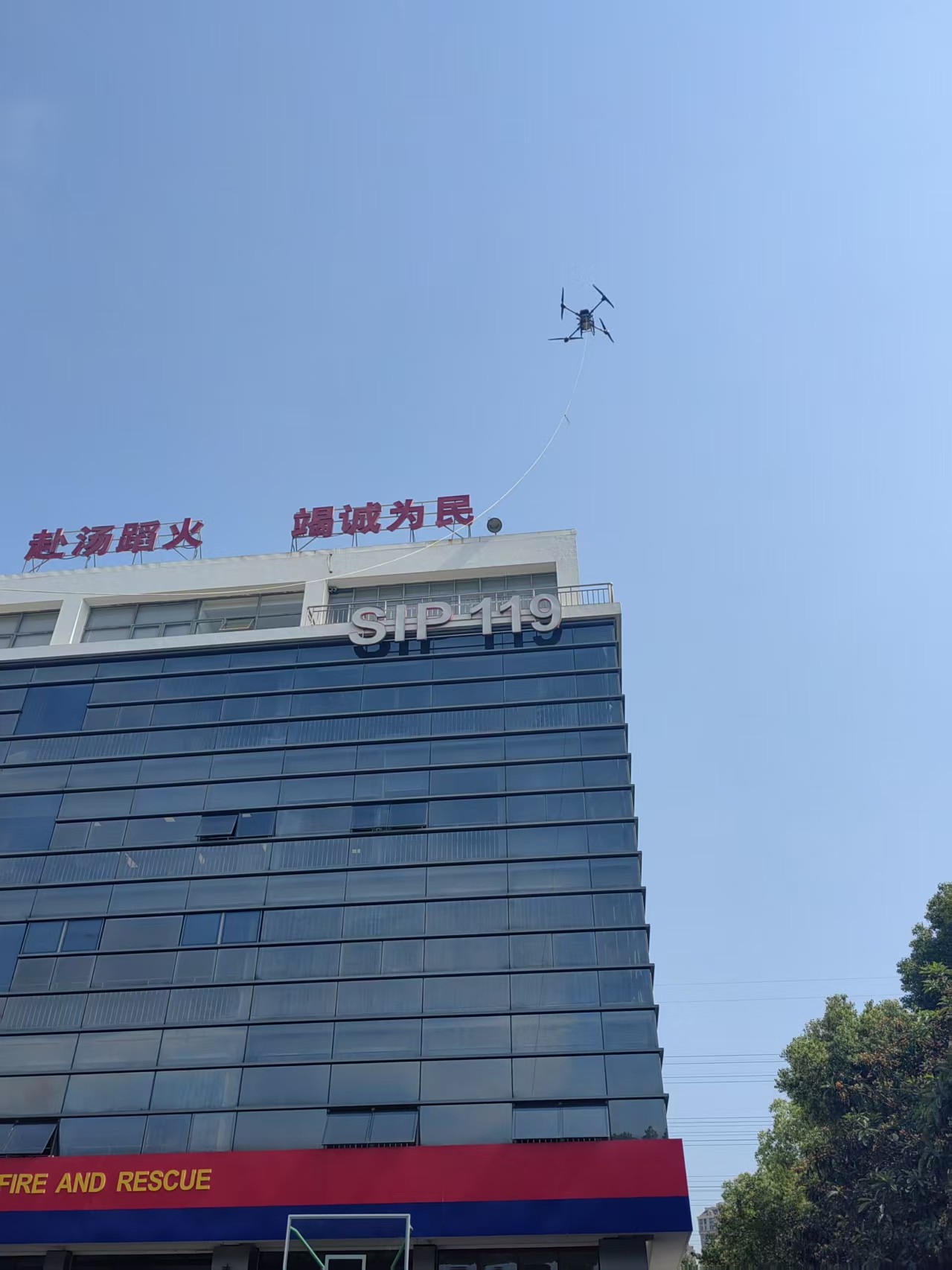

--Unmanned aerial vehicle throwing and laying ropes to construct rescue channels
--Climbing rope machine with water cannon and water hose automatically climbs to the fire extinguishing point

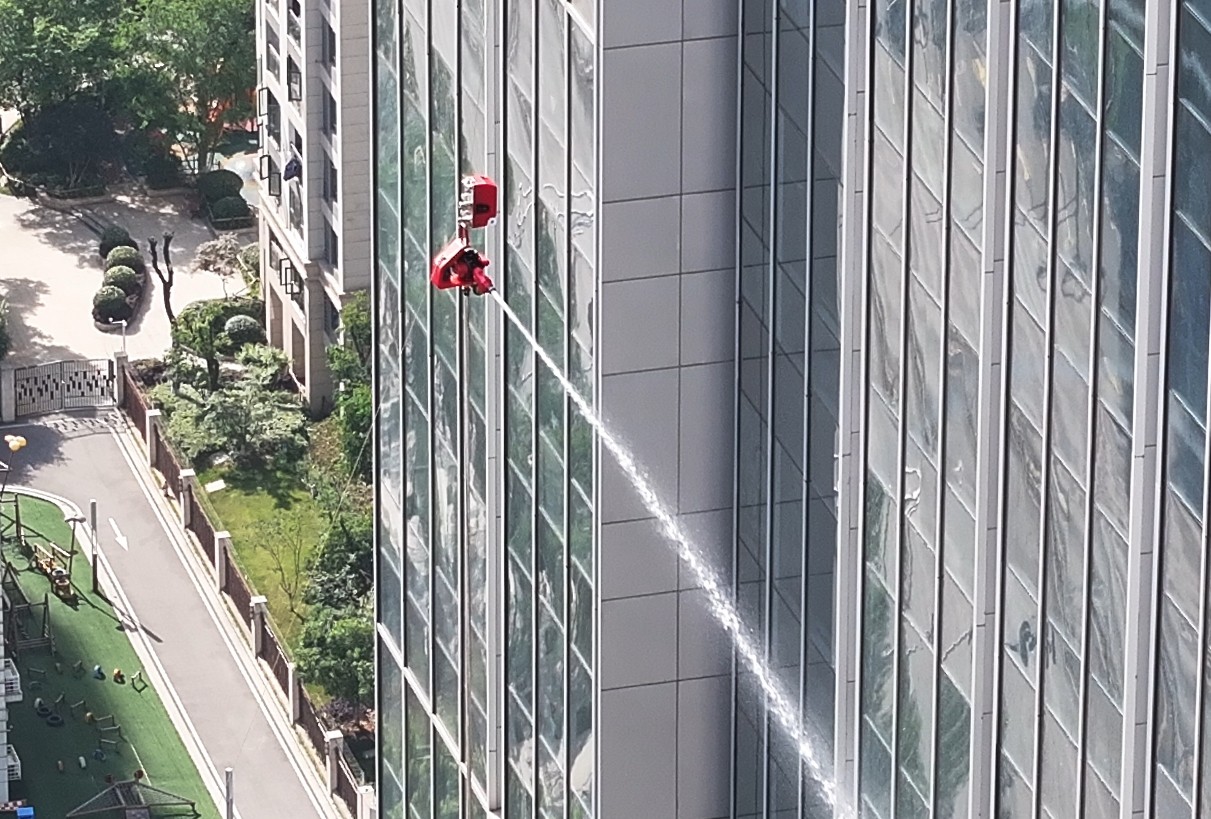

--Remote intelligent control water cannon achieves water fire extinguishing

Consult Now

Core technology

Integrated vehicle
Equipment integration vehicle
Cart loading equipment
Transport loading equipment to the site

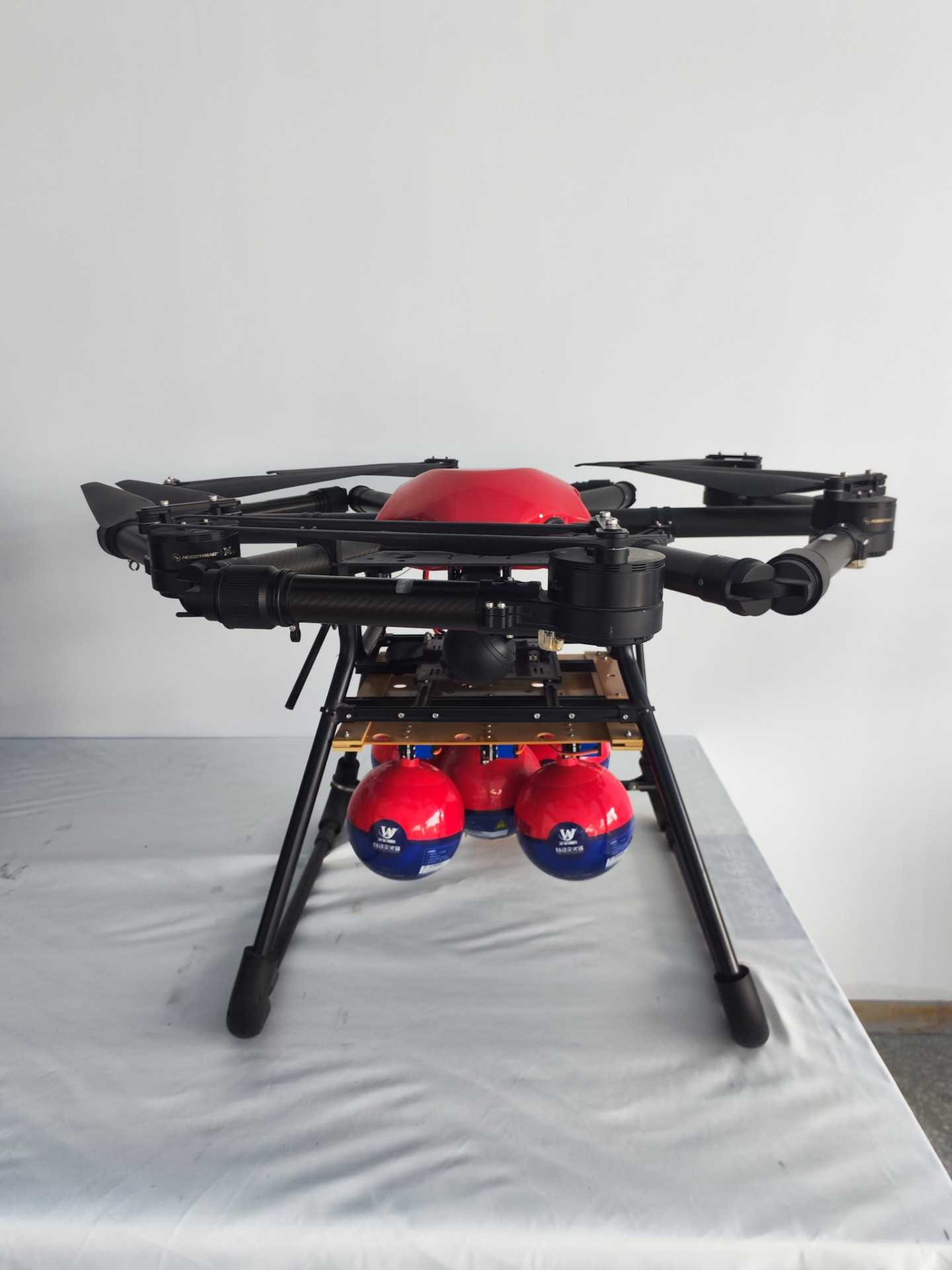

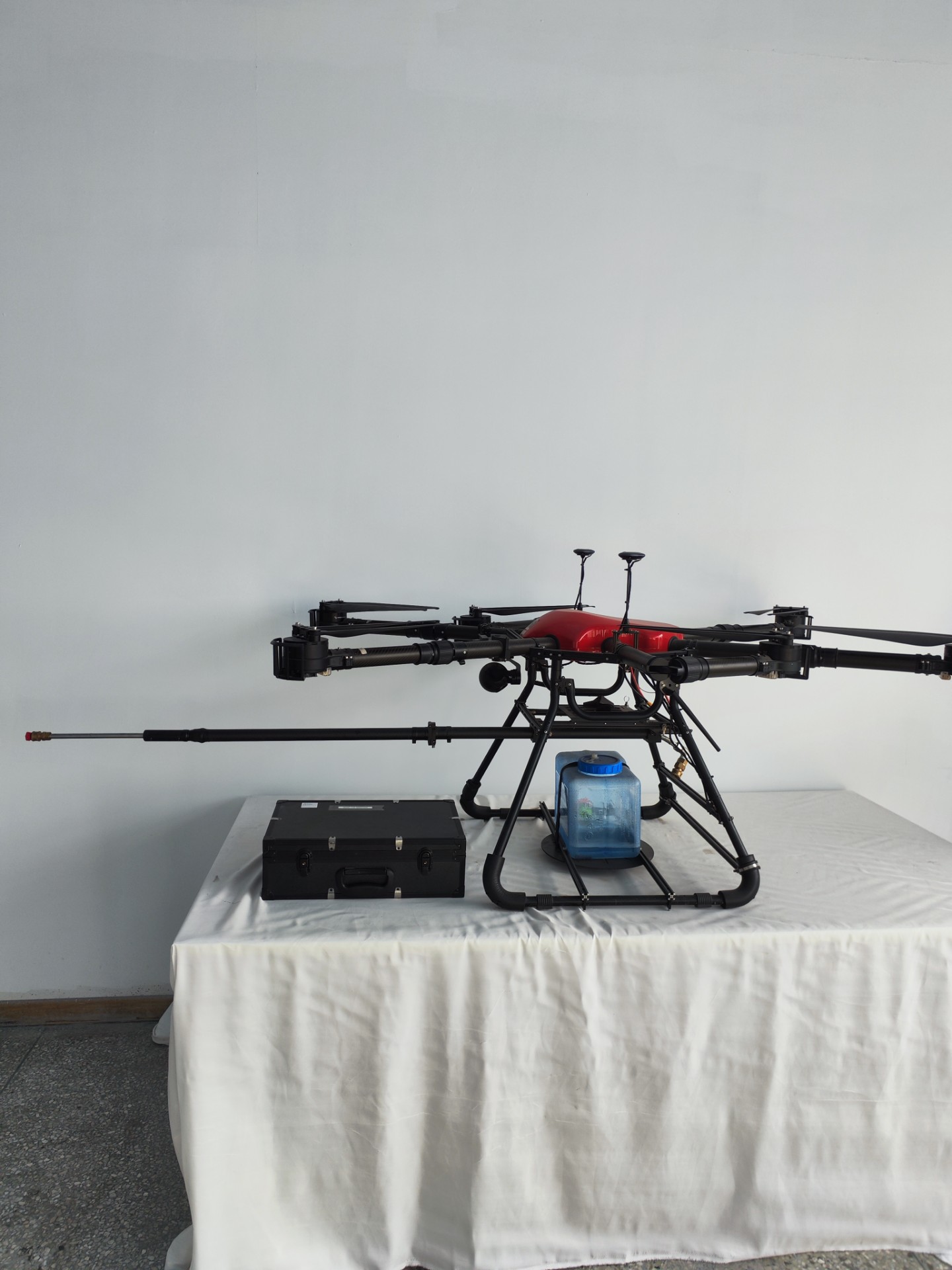

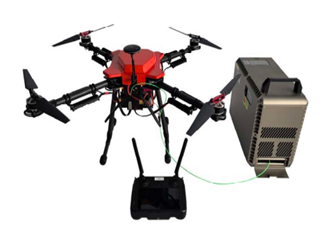

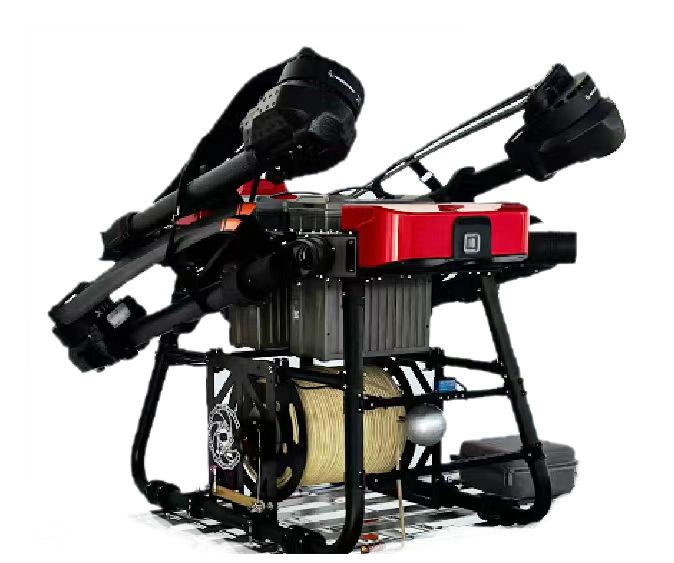

Cloth rope unmanned aerial vehicle
Laying rope passages over buildings
Rope climbing machine
Carry the water cannon to the corresponding height
euphroe
Fix and adjust the rope
Intelligent water cannon
Fire extinguishing tools
Polymer special rope
Load up to 1700kg

Functional purpose

Got it
In complex urban roads and fire environments, combat equipment can be rapidly deployed not only on elevated surfaces, but also on non elevated surfaces, and combat equipment can reach heights of over 200 meters.
stable
Build a stable rope passage with a load capacity of up to 1700 kilograms, carrying combat equipment and water hoses for stable operation, and the rope climbing machine can be intelligently controlled and locked.
There is water available
Carrying a 65 caliber water hose, with a high flow rate of 5 liters per second for spraying water, and a spraying range of over 40 meters, the ground can directly supply water to ensure uninterrupted water supply.
Quick release of water
From arriving at the scene of the fire, set up a 100 meter high-rise rope passage within 3 minutes and extinguish the fire with water within 9 minutes. Truly achieved, extinguishing the fire in prime time.
Spray accurately
Intelligent control of the water cannon platform, with up and down rotation of 130 degrees and left and right rotation of 180 degrees. Intelligent adjustment of water spray mode or water column or flower sun, spray wherever you want.
unmanned
Single person remote control rope climbing machine and water cannon platform, easy to operate remotely. Unmanned operations greatly reduce the risk of accidents for firefighters
Low cost
This set of intelligent equipment has a significant cost-effectiveness compared to existing equally efficient lifting vehicles.
Multi line combat
In the face of large-scale exterior fires, multiple channels can be arranged to set up combat positions to combat the fire and transport personnel and equipment into the interior of the building for firefighting and rescue.

Project expert review

On October 19, 2023, the National Fire and Rescue Bureau organized experts to review the bureau's technology plan "Development and Application Demonstration of Fire Fighting and Rescue Equipment for High rise Buildings Based on Rope Channels" (No. 2019XFCX33)

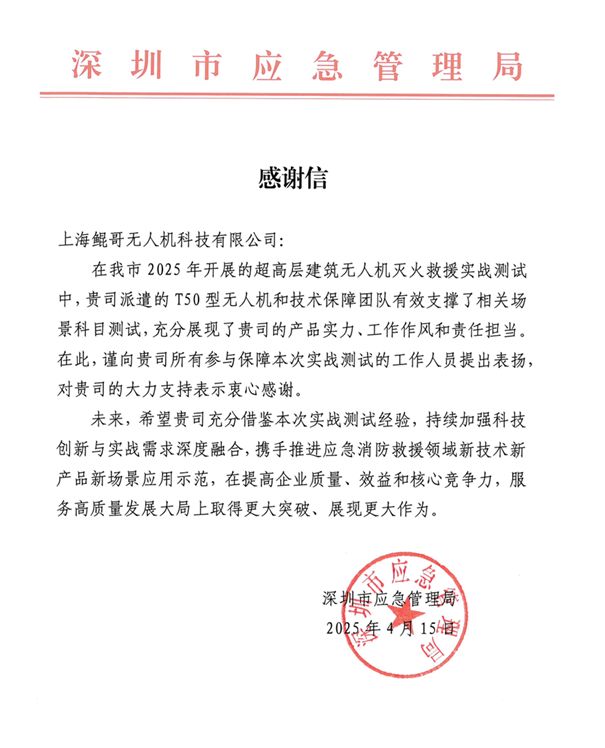

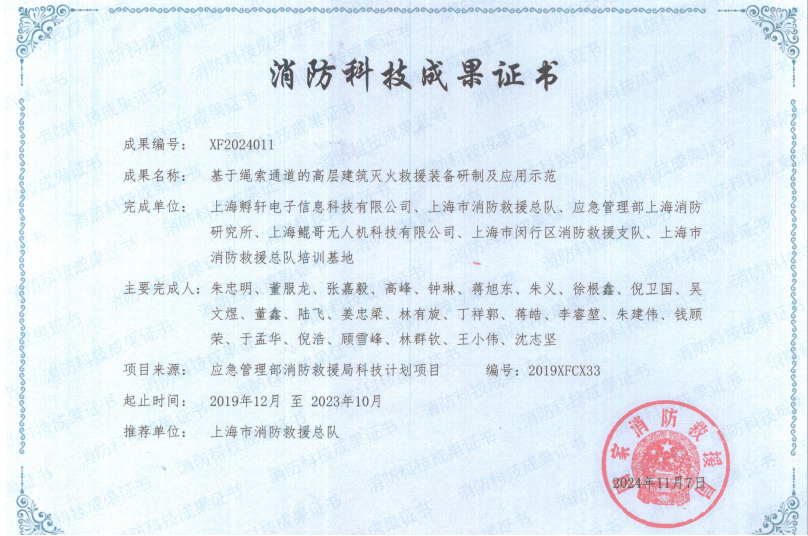

Related certificates

r&d team

Zhu Zhongming

Leader of the project team for the development and application demonstration of firefighting and rescue equipment for high-rise buildings based on rope channels.
Senior Engineer, Deputy Chief of Staff of the former Shanghai Fire Bureau Headquarters.
Member of the Firefighting and Rescue Expert Group and Special Researcher of the National Fire and Rescue Bureau.
Member of the Expert Committee of the China Fire Protection Association.

Gao Feng

First overall head of research and development.
Communication expert, senior engineer, senior architect.
Has won the second prize for scientific and technological inventions in the entire army and received the second-class merit award once.

Zhang Jiayi

Head of Research and Development.
Master's supervisor and professor.

Xu Genxin

Head of Electronic Automation Technology and Chief Designer of Intelligent Engineering.
Formerly served as the Director of the Computer Room in the Chief Engineer's Office of Shanghai Television Ninth Factory and the Chief Engineer of JVC Shanghai Engineering Company in Japan.

Ni Weiguo

Mechanical Technology Manager.
senior engineer.
文档图片 13/10000 实时翻译 Document image 13/10000 real-time translation and translation by Former researcher at the Institute of Optics, Chinese Academy of Sciences 划译 Former researcher at the Institute of Optics, Chinese Academy of Sciences.

Jiang Zhongliang

Drone Technical Director.
Drone testing engineer, advanced model pilot.

Wu Wenyu

Head of Operations Management.
Bachelor of Business Administration from New Zealand University.

Wang Tao

University lecturer, Master of Engineering.
Has won the second prize of Shanghai Science and Technology Award.
